Optische Sensoren Serie 610 (Optical Sensors Series 610)

Models OS 615, OS 616

Distance up to 5 000 m (615) / 30 – 100 m (616)

Field of view 4° (615) / < 4° (616)

Description

The Optical Sensors of the Series 610 capture ballistic events optically and in real time. They are used in ammunition and fuze testing, where detonation timing and delay time must be precisely evaluated. The IMS 8510 captures the sensor signals and prepares them for evaluation.

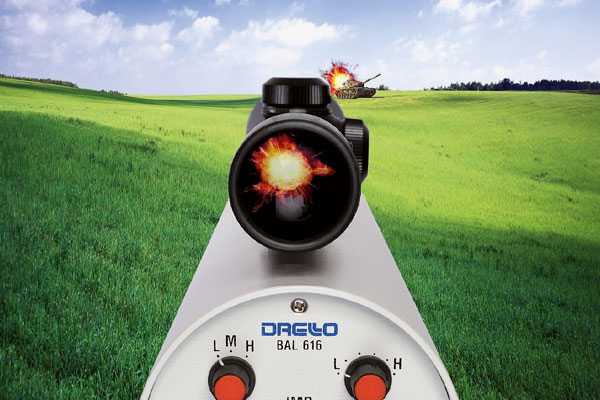

Optical Sensor Series 610

Both sensors deliver a +12 V digital pulse and a +12 V analog output in parallel and operate at an operating voltage of +12 V to +15 V with around 50 mA current consumption — ready for direct connection to common ballistic measurement systems.

Model variants

OS 615 — Fuze running time

The Sensor 615 is used to verify the fuze running time of explosive projectiles. Under good visibility conditions it detects an explosion flash, comparable to a photo flash of guide number 45, at a distance of up to 5 km. The field of view is 4° and the sensitivity can be variably adjusted.

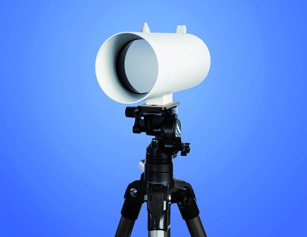

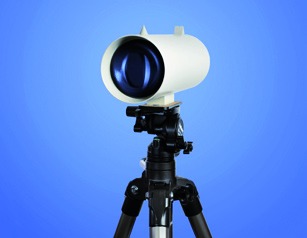

OS 616 — Tandem ammunition

The Sensor 616 is used for verifying tandem ammunition against reactive armor. It measures the delay between the ignition of the first and second charge. The sensor operates with a field of view < 4° at typical measurement distances of 30 m to 100 m and offers three fixed sensitivity levels.

Evaluation with IMS 8510

Both sensors can be combined with the Intelligent Measurement System IMS 8500 and the Velocity Computer 4043; for tandem evaluation, the IMS 8510 is additionally used, which digitally captures the signals and makes them available for further processing.

Technical data

Parameters

	OS 615	OS 616
Distance, typical	up to 5,000 m	30 m to 100 m
Field of view	4°	< 4°
Sensitivity levels	variable	3

Electrical

	OS 615	OS 616
Operating voltage	+12 V to +15 V	+12 V to +15 V
Current consumption	ca. 50 mA	ca. 50 mA
Output pulse, digital	+12 V	+12 V
Output pulse, analog	+12 V	+12 V

Environmental conditions

	OS 615	OS 616
Operating temperature	−10 °C to +60 °C	−10 °C to +60 °C
Storage temperature	−20 °C to +75 °C	−20 °C to +75 °C
Humidity	≤ 80 %, non-condensing	≤ 80 %, non-condensing

Dimensions, overall

	OS 615	OS 616
Length	360 mm	530 mm
Width	100 mm	180 mm
Height	130 mm	100 mm
Weight	ca. 3 kg	ca. 5.2 kg

For use with

	OS 615	OS 616
Intelligent Measurement System IMS 8500	●	●
Velocity Computer 4043	●	●

Applications

Verification of the fuze running time of explosive projectiles (OS 615)
Measurement of the delay time in tandem ammunition against reactive armor (OS 616)
Testing of tracer ammunition (tracer indicator) per AC/225
Integration into IMS 8500 / IMS 8510 for capturing and evaluating ballistic signals

OS 615 — verification of the fuze running time of explosive projectiles up to 5 km
OS 616 — delay-time measurement on tandem ammunition against reactive armor
Testing of tracer ammunition (tracer indicator) per AC/225
Field of view 4° (OS 615) / < 4° (OS 616) for directional detection
Variable sensitivity (OS 615) or three levels (OS 616)
Digital and analog output (+12 V each) for direct integration into measurement chains
Combination with IMS 8500 / IMS 8510 and Velocity Computer 4043
