Laserzielgerät Serie 1055 (Laser Targeting Device Series 1055)

Description

The Laser Targeting Device LAD 1055 is designed for use with the Series 1060 shooting tables and the Series 1055 ammunition test devices. A highly visible 650 nm laser beam projects the line of sight up to a distance of about 150 m and eliminates the otherwise time-consuming mechanical setup of the weapon — an advantage that is particularly noticeable at long measurement distances.

All variants operate at 5 V supply voltage with about 32 mA current consumption and are designed for operating temperatures of −10 to +50 °C. The laser unit complies with class 2; other classes, ranges and beam colors are available on request.

Model variants

Four variants cover the entire ATD range as well as standalone use:

• LAD 1055-0 — Standalone variant (100 × 150 × 50 mm, ca. 4 kg) for free alignment tasks, e.g. in combination with FR 1060 shooting tables.
• LAD 1055-1 — for ATD 1055-0 and ATD 1055-1 ammunition test devices (100 × 150 × 50 mm, ca. 4 kg).
• LAD 1055-2 — for ATD 1055-2; same power supply and laser module specification as LAD 1055-1/-3.
• LAD 1055-3 — for ATD 1055-3 (180 × 180 × 67 mm, ca. 15 kg), designed for heavy large-caliber test stands.

The -1, -2 and -3 models can be adapted directly to the respective ammunition test device, enabling fast, repeatable targeting alignment without any conversion of the weapon.

Test barrels

For all ammunition test devices, DRELLO supplies corresponding test barrels for handgun, long-arm and shot calibers. All barrels are available as velocity measurement barrels, gas pressure measurement barrels or precision measurement barrels and are manufactured to NATO (EPVAT), CIP, SAAMI and additional standards.

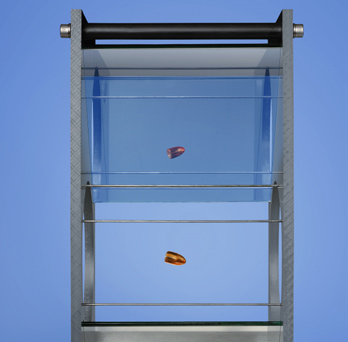

AOA 1529 — Projectile angle of attack

To test the projectile angle of attack, the AOA 1529 is used in combination with a short-duration flash unit and an electronic camera. This makes it possible to photographically capture the position of the projectile within the test arrangement.

Retarder 171

The Retarder 171 triggers flash unit and camera exactly at the moment the projectile is within the test arrangement.

Technical data

LAD 1055 — Electrical

	LAD 1055-0	LAD 1055-1	LAD 1055-2	LAD 1055-3
Supply voltage	5 V	5 V	5 V	5 V
Current consumption	32 mA	ca. 32 mA	ca. 32 mA	ca. 32 mA

LAD 1055 — Environmental conditions

	all models
Operating temperature	−10 to +50 °C
Humidity	≤ 80 %, non-condensing

LAD 1055 — Laser module

	LAD 1055-0	LAD 1055-1	LAD 1055-2	LAD 1055-3
Wavelength	650 nm	650 nm	650 nm *	650 nm *
Range	ca. 150 m	ca. 150 m	ca. 150 m *	ca. 150 m *
Class	2	2	2 *	2 *

* Other classes, ranges and colors on request.

LAD 1055 — Dimensions

	LAD 1055-0	LAD 1055-1	LAD 1055-2	LAD 1055-3
Length	100 mm	100 mm	120 mm	180 mm
Width	150 mm	150 mm	160 mm	180 mm
Height	50 mm	50 mm	56 mm	67 mm
Weight	ca. 4 kg	ca. 4 kg	ca. 7 kg	ca. 15 kg

LAD 1055 — For use with

	LAD 1055-0	LAD 1055-1	LAD 1055-2	LAD 1055-3
Stand alone	●	–	–	–
Ammunition test device	–	ATD 1055-0 / 1055-1	ATD 1055-2	ATD 1055-3

Test barrels — Calibers

	Test barrels
Handguns	all
Long arms	all
Shot	all

AOA 1529 — Dimensions

	AOA 1529
Length	200 mm
Width	210 mm
Height	490 mm
Weight	ca. 6 kg

Retarder 171

Electrical	Retarder 171
Supply voltage	230 V AC, 50 Hz

Dimensions	Retarder 171
Length	260 mm
Width	160 mm
Height	90 mm
Weight	ca. 3 kg

Applications

• Targeting alignment of Series 1055 ammunition test devices over long distances
• Alignment of FR 1060 shooting tables for original handguns
• Projectile angle-of-attack testing via AOA 1529 with short-duration flash unit and camera
• Synchronized short-duration photography with Retarder 171
• Ballistic testing per NATO (EPVAT), CIP, SAAMI and additional standards
